Adding trailer light connection on 2018

Discussion in '2016 + Toyota Tacoma' started by ddsrph, Feb 10, 2018.

  1. ddsrph

    ddsrph Member

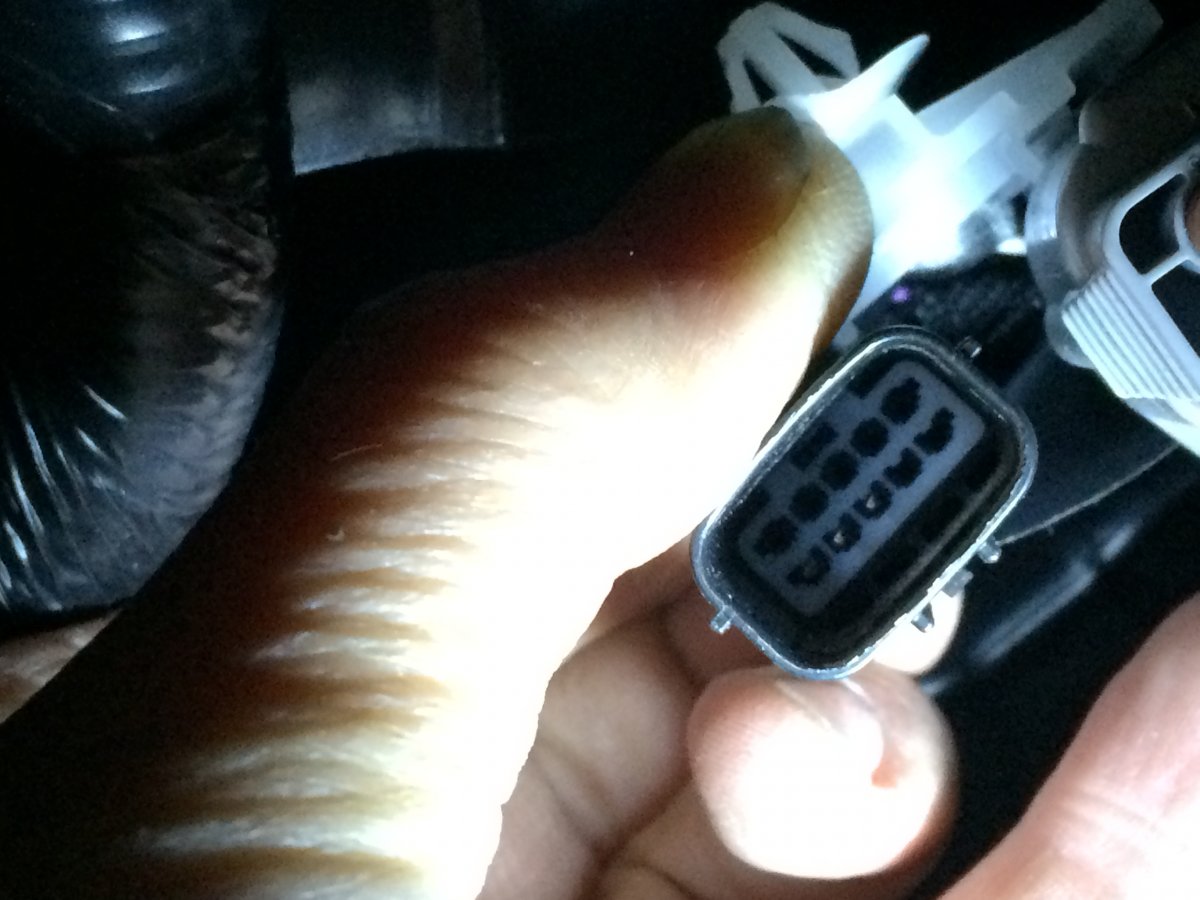

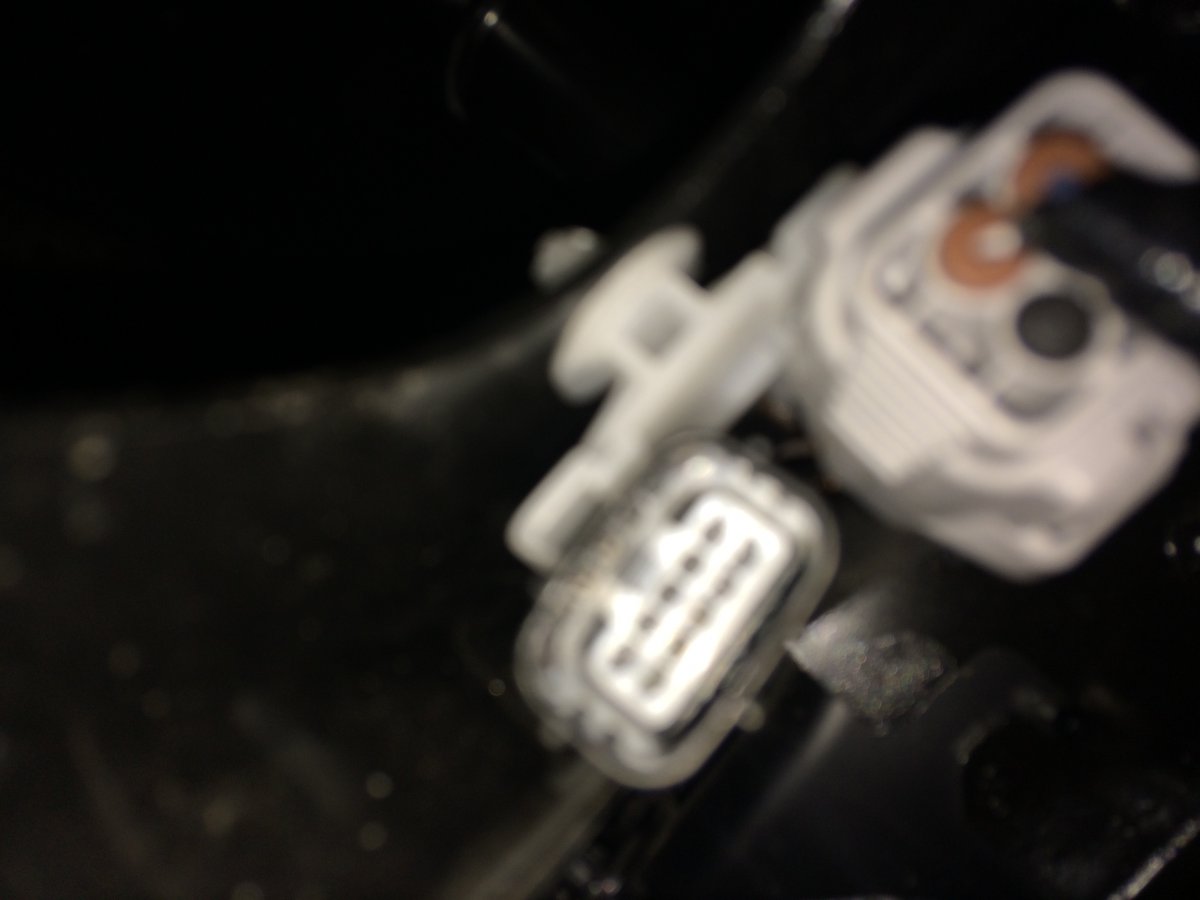

    I am trying to add trailer light connection to my 2018 access cab Tacoma. There are no connectors in which to add a T wiring kit. Only a plug with ten pin connections, Three of which are male pins and the other seven female. I will try to post photo. What do I need to do to tap in for trailer lights?
    Thanks
    JM


    Attached Files:

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OR17TRD

    OR17TRD Well-Known Member

    You don’t have the tow package?
    You might need the adaptor or wire harness. It should be the same for the 2016.

  4. OP
    ddsrph

    ddsrph Member

    No tow package. Just installed a Curt hitch which is a 30 minute job. My harness has no place to tap except for the connector in the photos above.
    I am hoping all I need is a plug in connection for this one connector.

  5. OR17TRD

    OR17TRD Well-Known Member

    That’s all you should need.

  6. AZ Pete

    AZ Pete Active Member

    might contact etrailer.com. They have a video installation for the 2016, which is likely the same.

  7. OP
    ddsrph

    ddsrph Member

    E trailer sold me a T type wiring kit that tells me to remove each tail light assembly and connect. But I have no connectors to connect to. The only way I have to tap into my wiring harness in the tail/turn area is the one connector in the above photos. Is it possible I have a factory wired trailer connection and need only a special connector for hookup. The harness I got from etrailer definitely won't work.

  8. OR17TRD

    OR17TRD Well-Known Member

    That’s very possible.

  9. OP
    ddsrph

    ddsrph Member

    I found my problem. I didn't realize the connectors behind the lights were attached directly to the bulb housings, I was expecting to see a connector as a stand alone further down the harness. My T adapter will now work as per the instruction sheet.
    Thanks
    JM

    AZ Pete, OR17TRD and Bogunn like this.
  10. OR17TRD

    OR17TRD Well-Known Member

    Sounds like you’re in business. Let’s see some pictures. Welcome to the forum.

  11. OP
    ddsrph

    ddsrph Member

    Will do. I am also installing a Peragon aluminum bed cover which should be done soon. So far I like the product.
    JM

    Bogunn likes this.
  12. OP
    ddsrph

    ddsrph Member

    In

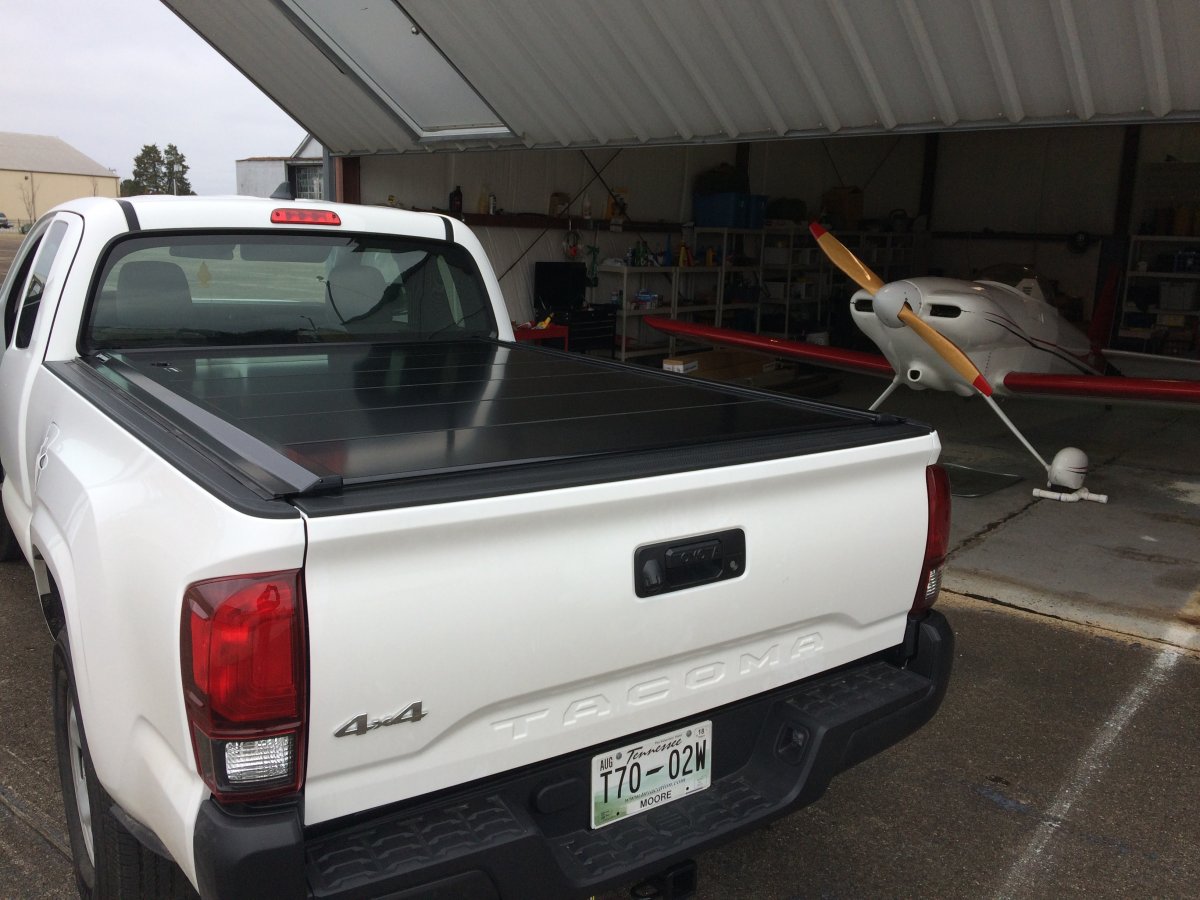

    Just finished installing Curt hitch, T harness for trailer lights, and best of all a Peragon
    Aluminum bed cover.


    Attached Files:

    Bogunn and OR17TRD like this.
  13. Bogunn

    Bogunn Well-Known Member

    Nice. Looks good.
