drive train clunking sound under acceleration.

Discussion in 'General Tacoma Discussion' started by Brendon Kehoe, Jun 8, 2020.

  1. Brendon Kehoe

    Brendon Kehoe New Member

    Hi
    I own a 2003 3.4 4x4. I recently did a leaf spring swap.Since then I get a clunking sounds only as i accelerate. I have gone through all my u joints, torn down my t case trying to find the cause. i thought it was going to be the t case output shaft bearing but those are ok. Im lost without my yota can anyone help?

    tooter likes this.
  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. B-Man

    B-Man Well-Known Member

    Welcome. Did ya recheck your ubolt nuts?

    B.C., Brendon Kehoe and tooter like this.
  4. texasred

    texasred Well-Known Member

    Taller leafs changing the pinion angle? Even a small change might stress old u-joints.

  5. OP
    Brendon Kehoe

    Brendon Kehoe New Member

    I have not yet. I will tonight I just dropped her after doing both differential tear downs. Thought maybe I had a planetary gear missing teeth or something but no. At this point u bolts are one of the few options left.

    B.C., B-Man and tooter like this.
  6. OP
    Brendon Kehoe

    Brendon Kehoe New Member

    That was my first variable I checked was the whole drive shaft. Everything was replaced less then 3 years ago. They were all tight and no play I thought maybe it was the center carrier bearing. I replaced that and it's good all the U-joints an the center carrier bearing are good.

    Last edited: Jun 8, 2020
    tooter, B.C. and B-Man like this.
  7. B.C.

    B.C. Well-Known Member

    Angle just a bit off can do weird things.

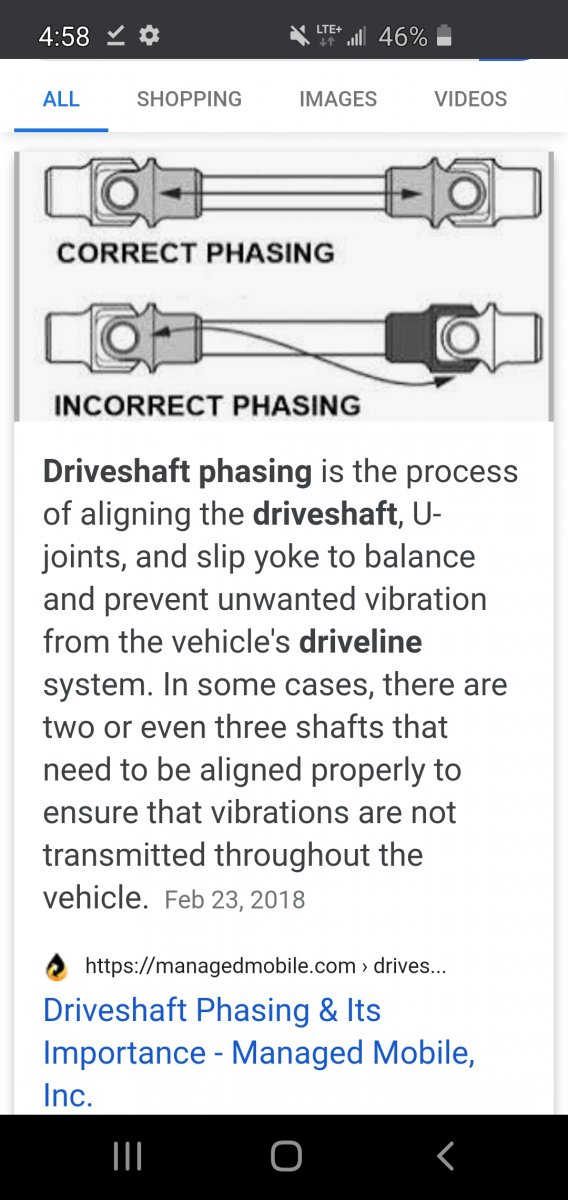

    Also did you put the driveshaft back in it, in phase?

    tooter likes this.
  8. B.C.

    B.C. Well-Known Member


    tooter and B-Man like this.
  9. Tape

    Tape Well-Known Member

    If it didn't make noise before the leaf spring change, I would suspect it's something in the leaf springs.

    tooter and B-Man like this.
