Lift Advice/help

Discussion in '2016 + Toyota Tacoma' started by sjoh527, Feb 23, 2019.

  1. sjoh527

    sjoh527 Well-Known Member

    Hey everyone. Been looking around at lifts, and can honestly say I've never had any experience with lifting a vehicle.

    I found this lift kit that's in my price range. Can anyone explain the options for ordering as there are several. Also what size of tires do you think I can get with this kit?

    https://www.rogue-offroad.com/product-p/kss2t140-tac-16.htm

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. dawg

    dawg Active Member

    In the same boat u are. Going with similar lift also

  4. goob760

    goob760 Member

    The first option gives you a 1/4” spacer that sits on top of the coils in front and a block in the rear to lift it. The second option is just the front and rear suspension with no spacer or rear lift block. The third and fourth option is to add a leaf pack to the rear. If you want a lift in the rear the leaf packs are the way to go over the block.

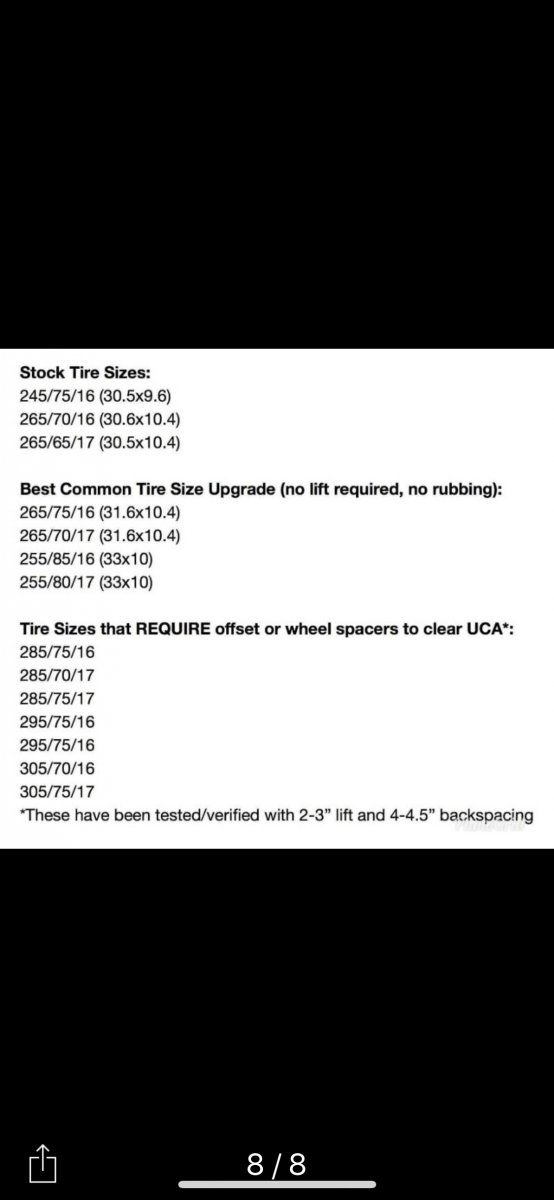

    As far as tire size you can refer to this guide.

    OR17TRD, B-Man and sjoh527 like this.
  5. OP
    sjoh527

    sjoh527 Well-Known Member

    Thank you for the info! So if I had to guess option 4 comes with the spacer in option 1, right? I would prefer to stay away from the spacer.

    OR17TRD and B-Man like this.
  6. goob760

    goob760 Member


    It’s possible but even if it comes with it you don’t have to use it. It’s a 1/4” spacer so it’s probably just there to add that little bit of lift to make it 2.75-3” so you can clear bigger tires.

    B-Man likes this.
  7. OP
    sjoh527

    sjoh527 Well-Known Member

  8. GregW138

    GregW138 Active Member

    I believe the spacer is to correct the drivers side lean caused by gas tank not being centered. The OME is hugely popular with taco owners but keep in mind any lift is going to affect the geometry of your CVs. And Drivers side axle needle bearing is a weak link on Tacomas

    OR17TRD likes this.
  9. OP
    sjoh527

    sjoh527 Well-Known Member

    The CV issue has been the main reason I haven't done it in the past even with my 4Runner. I don't want more than 2" of lift so I figured that would be the relatively "safe" limit. I need to do more research. And obviously if anyone has had experience with the setup I'm looking at please do chime in.

    GregW138 likes this.
  10. OR17TRD

    OR17TRD Well-Known Member

    sjoh527 and goob760 like this.
  11. OP
    sjoh527

    sjoh527 Well-Known Member

    Thank you! I will likely stock pile my funds so I can do everything at once. Kit, Tires, wheels, speedo kit, and other things I haven't found yet .

  12. OR17TRD

    OR17TRD Well-Known Member

    Honestly I wouldn’t spend money on a speedo recalibration. 33” tires will make it off about 4 mph at 60. Anything around town is only 3mph off or less at 40. If you do the speed limit you’ll just get there a few seconds earlier. I know multiple officers and they have all said they don’t mess with people until they are 7mph over. Or if you’re doing other stupid stuff.
    Pictures of your build as it happens. Have fun.

    Darke19 and sjoh527 like this.
