Front door panel removal

Discussion in '1995 - 2004 Toyota Tacoma' started by Jordan36w, Jul 8, 2014.

  1. Jordan36w

    Jordan36w Member

    How do I go about Getin the door panels off step by step? I don't want to mess anything up lol!

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. Yota4life

    Yota4life Well-Known Member

    I can definitely help you on this...

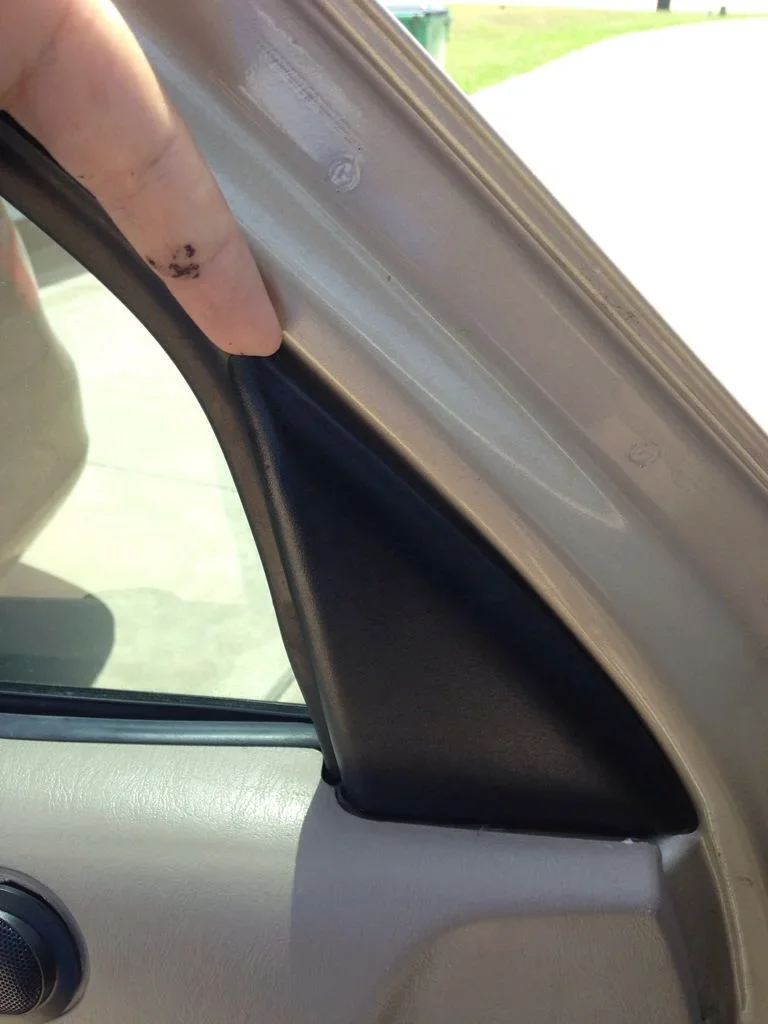

    First remove the black sail panel by popping it off ImageUploadedByTaco Forum1404928043.582706.jpg ImageUploadedByTaco Forum1404928072.866895.jpg

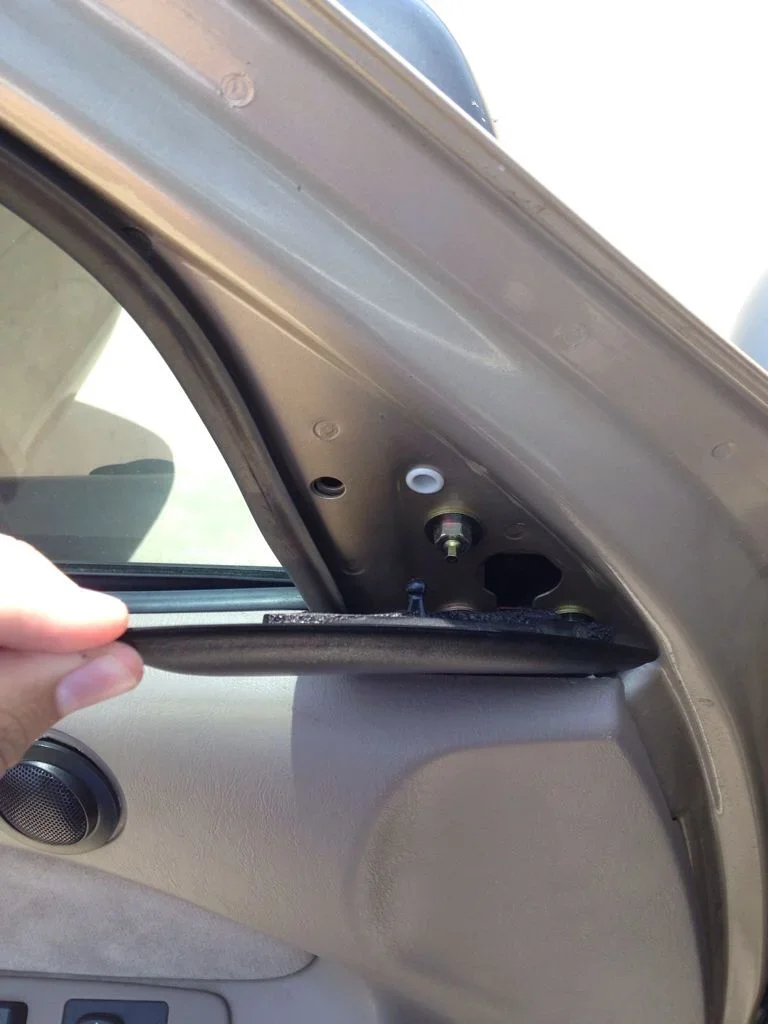

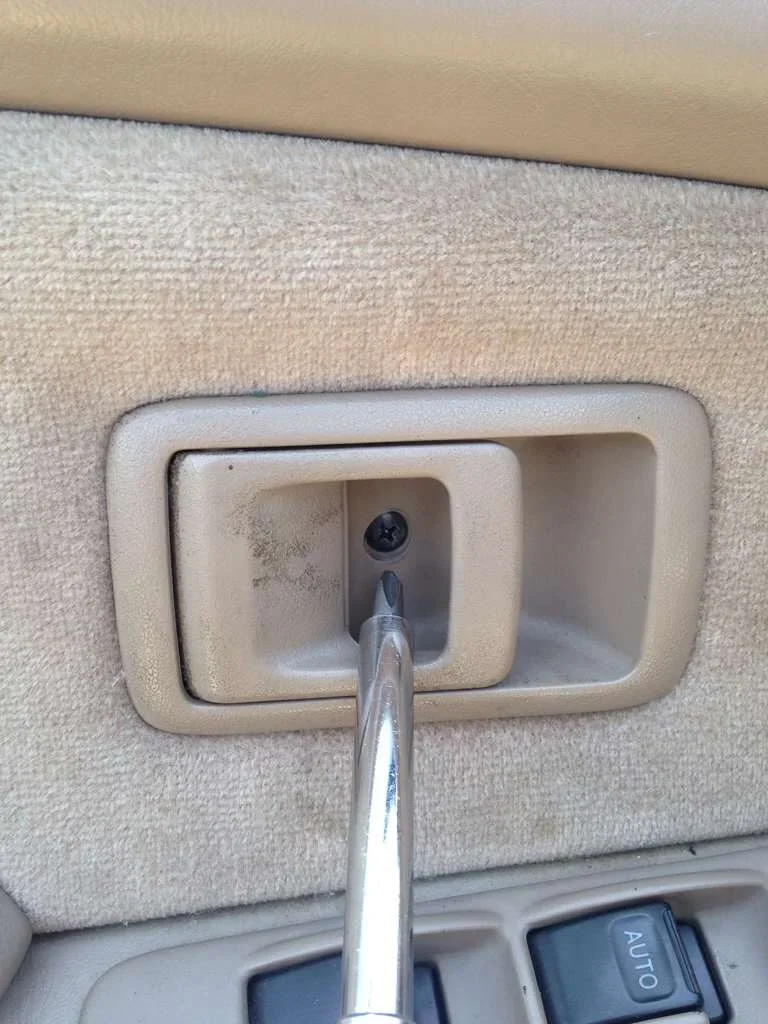

    ImageUploadedByTaco Forum1404927482.916213.jpg remove this screw^^

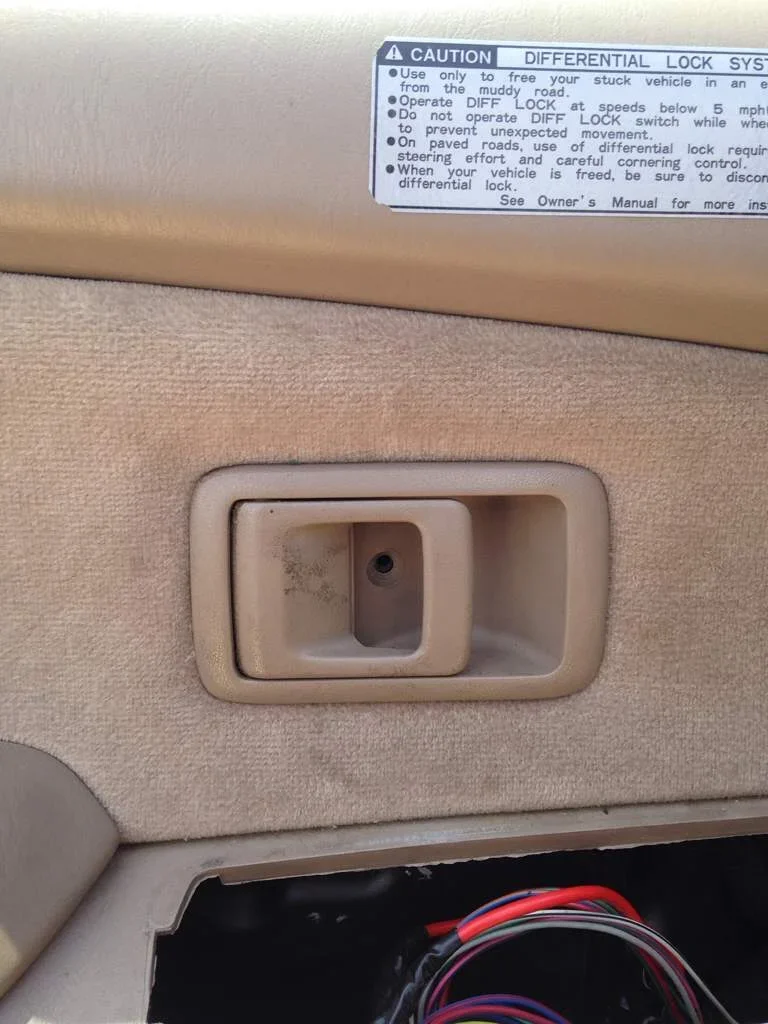

    ImageUploadedByTaco Forum1404927504.131679.jpg

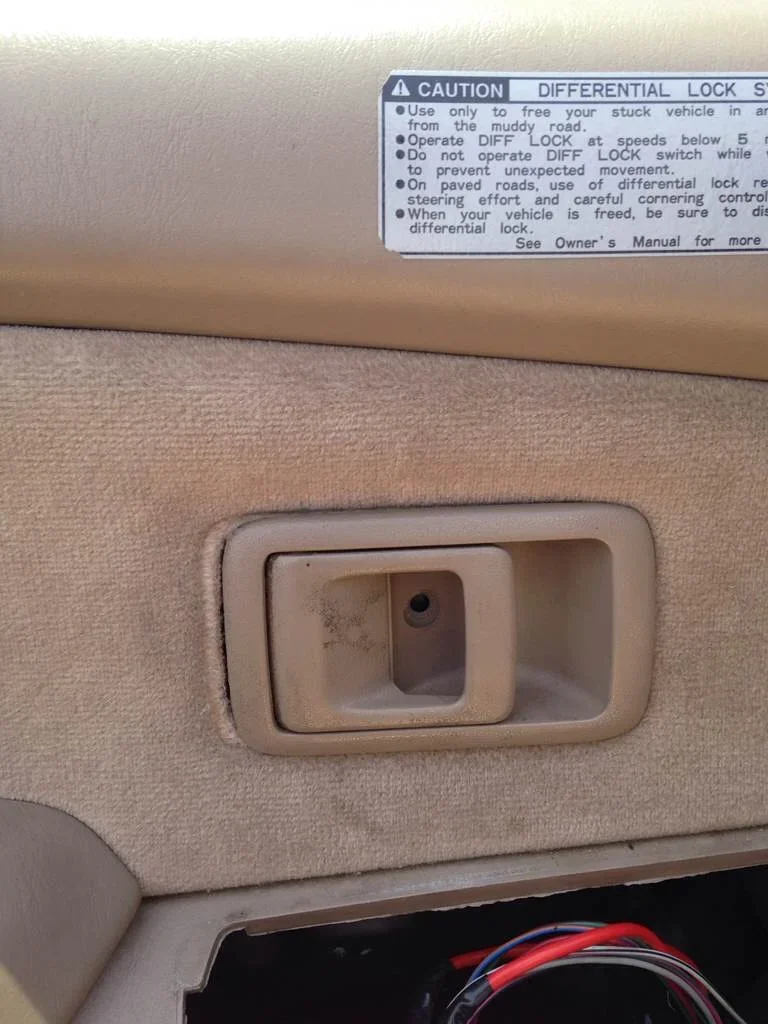

    ImageUploadedByTaco Forum1404927528.315347.jpg

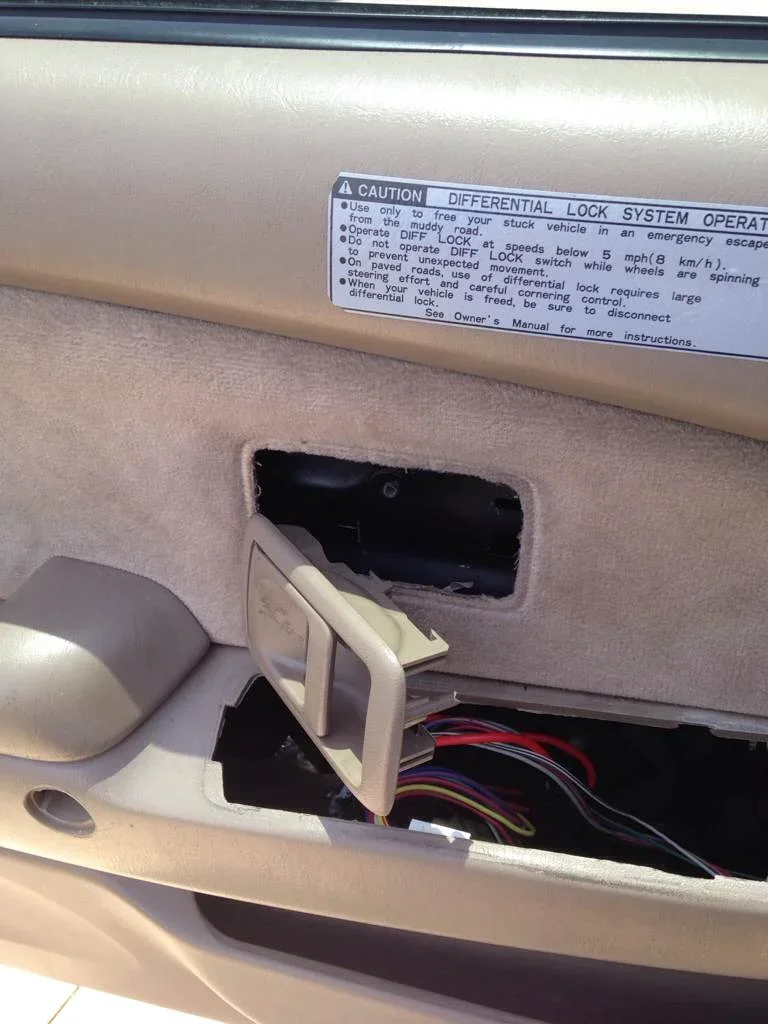

    slide it to the right then pull it out once it's been slid to the right ImageUploadedByTaco Forum1404927775.367170.jpg

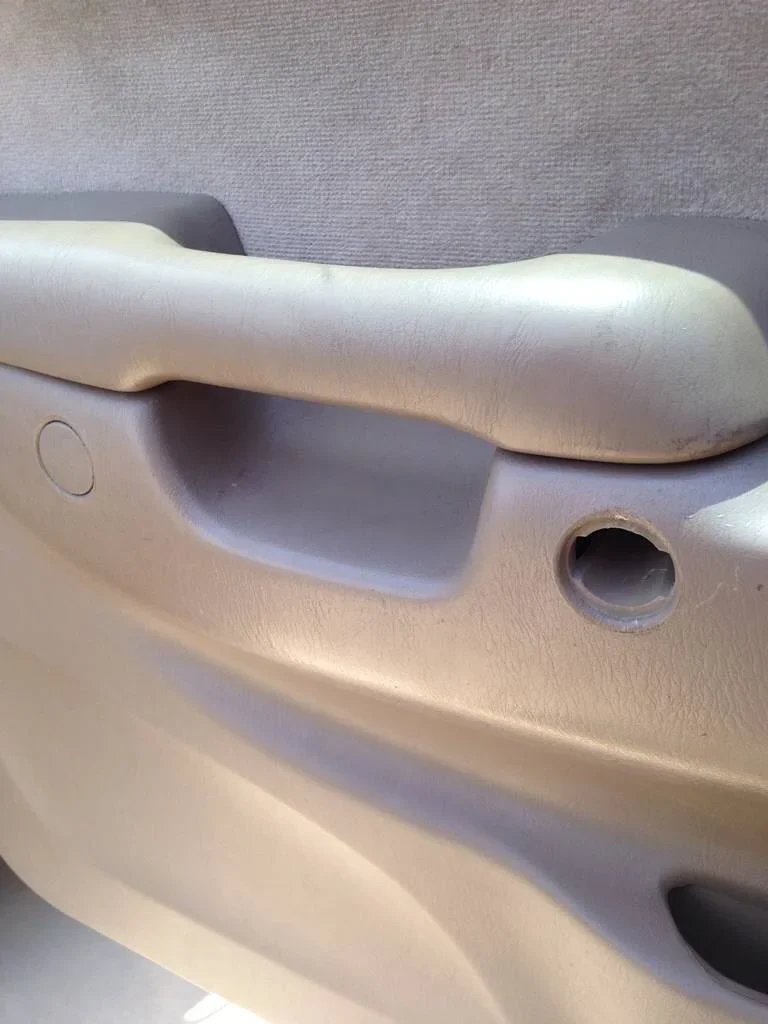

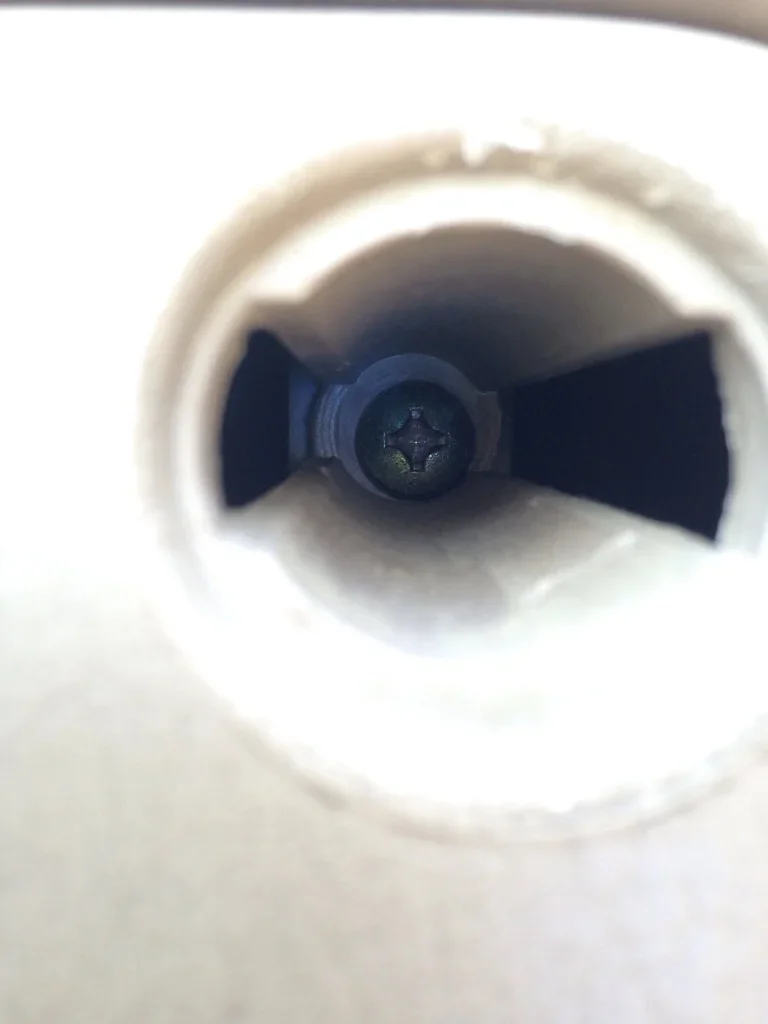

    Remove these two hole covers with a flathead screwdriver then remove the screw out of each hole
    ImageUploadedByTaco Forum1404927574.698093.jpg
    ImageUploadedByTaco Forum1404927622.084029.jpg

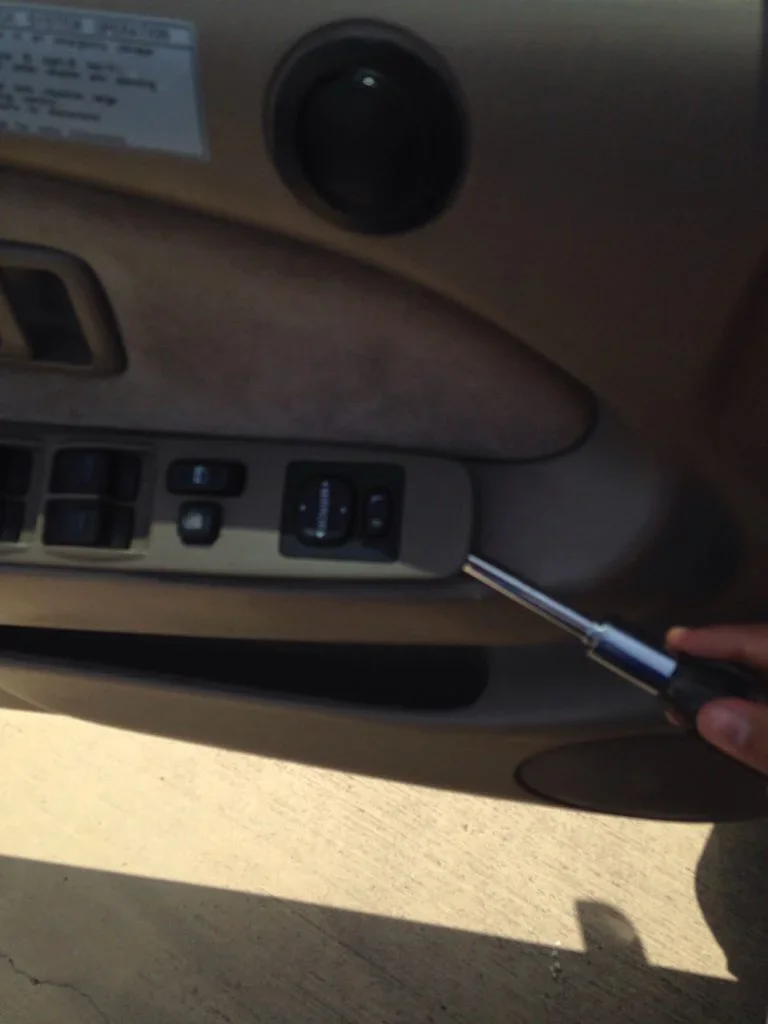

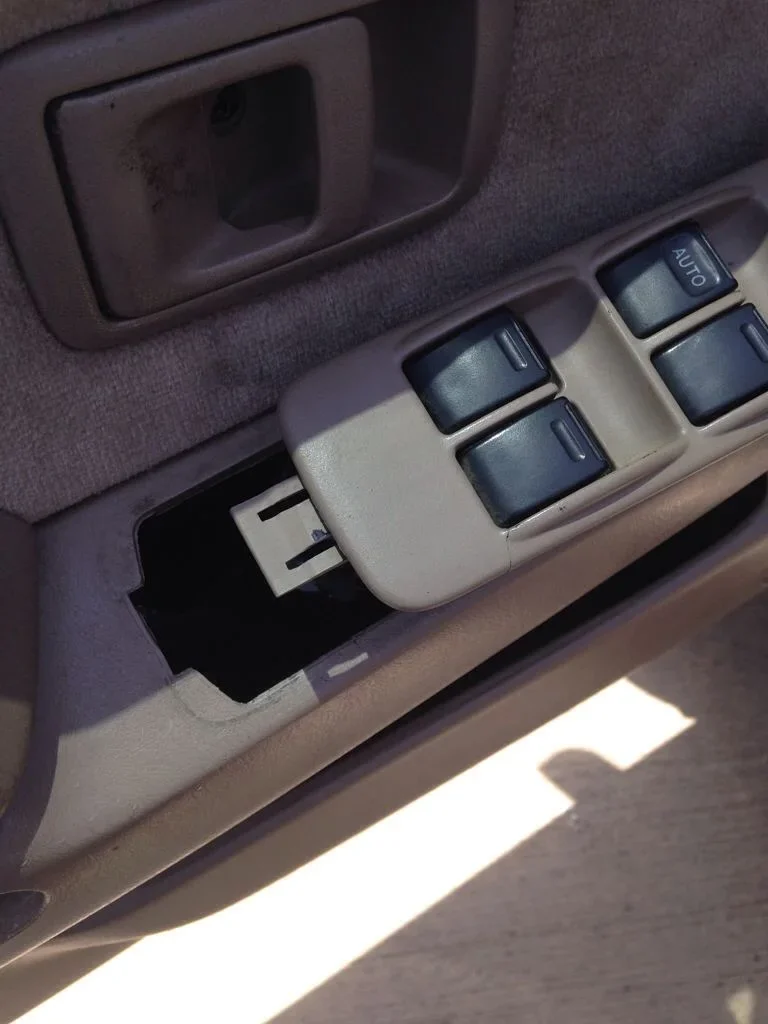

    Pop off the control cluster with a flathead... Make sure you pop off the forward most part the piece then slide the whole piece forward to remove it
    ImageUploadedByTaco Forum1404927651.865085.jpg
    ImageUploadedByTaco Forum1404927723.215325.jpg
    Then you remove the connectors from it

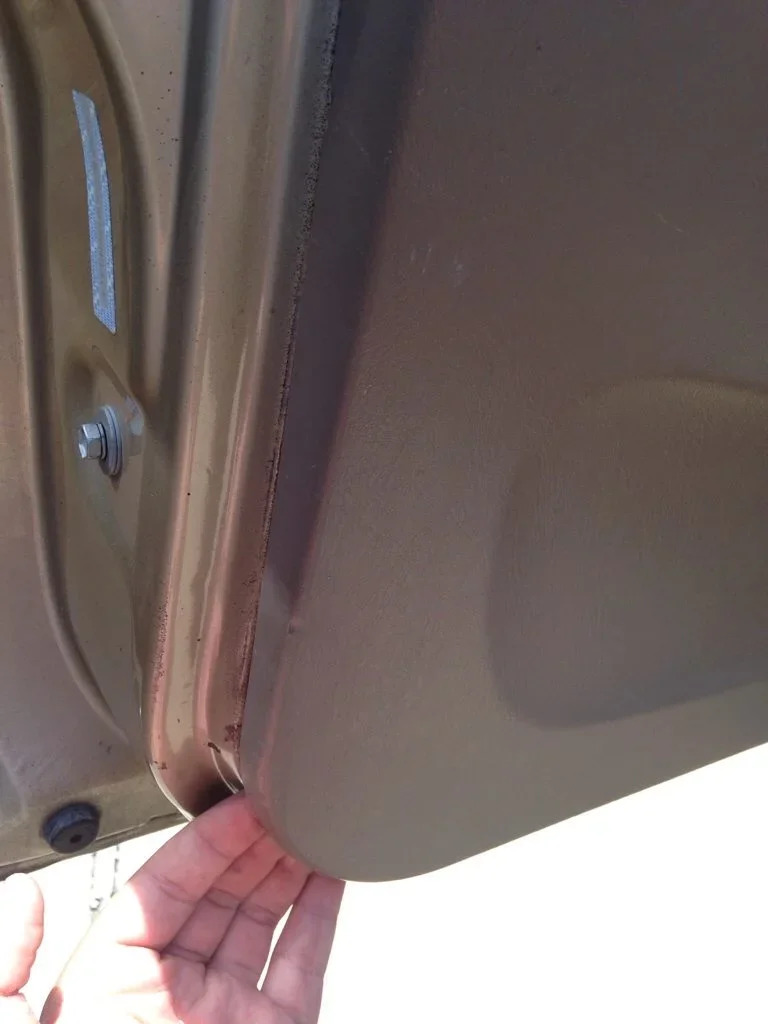

    Next you pop the whole panel from the door frame by sliding your hand in between the two parts ImageUploadedByTaco Forum1404927832.948609.jpg
    Be careful not to break any of the clips.... Like I did.
    Then after you have the panel popped off all the clips, you have to slide the panel up off the frame... Then with the panel off the door frame and still close to it, remove the connector from the tweeter...then you're all done and it's off!! To put it back on you just reverse the process, it's pretty simple. Hope this helped

  4. OP
    Jordan36w

    Jordan36w Member

    Thanks man! What about the door handle? Any tips on that?

  5. Yota4life

    Yota4life Well-Known Member

    Do you mean the one on the outside?

  6. OP
    Jordan36w

    Jordan36w Member

    No the inside one..it has a metal rod going to it

  7. Yota4life

    Yota4life Well-Known Member

    You just push it through that hole in the door panel and leave it attached

  8. Lou Hahn

    Lou Hahn New Member

    I have a 2004 Tacoma that looks like this but has manual windows. I can't figure out how to get the window crank off.

  9. OR17TRD

    OR17TRD Well-Known Member

    There is a clip on the base of it that has to be removed. It usually is put on from the top down.

    4wd likes this.
  10. OR17TRD

    OR17TRD Well-Known Member

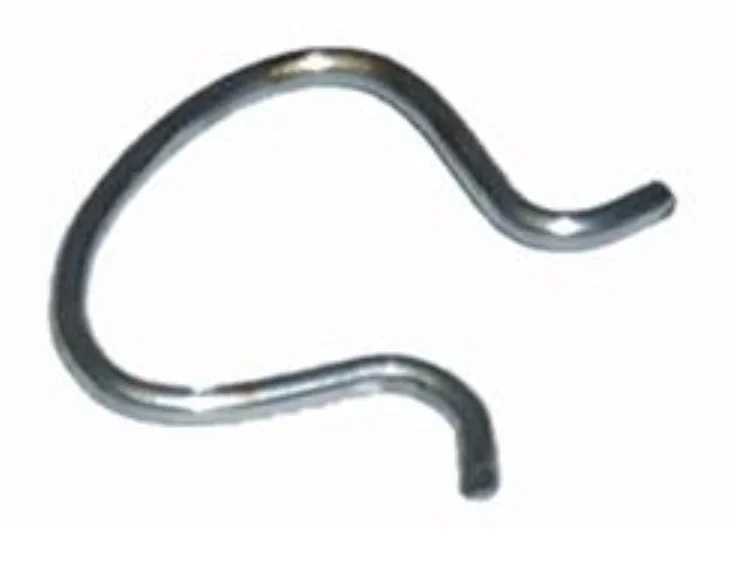

    They look like this. 729BF7CD-917D-467B-BB2E-596914E9849F.jpeg

  11. Lou Hahn

    Lou Hahn New Member

    Thanks but I seem to only have a very thin plastic washer-like thing there.

  12. OR17TRD

    OR17TRD Well-Known Member

    Did you figure it out? Welcome to the forum. Btw.

  13. Lou Hahn

    Lou Hahn New Member

    No, it is so snug I can't tell where the clip is. Aside from the fact that I would probably need a special tool specifically for that one type of clip.
    I might be better off paying my repairman to do this.

  14. OR17TRD

    OR17TRD Well-Known Member

    $8 on amazon with a quick search
    https://www.amazon.com/Dorman-76951-Window-Handle-Removal/dp/B000CO96VI

    You can also use an old shirt. It’s a C clip that has to be popped out from behind the crank lever before the crank can slide off.You can pry the crank handle slightly enough to get a view of the clip, should be a goldish-brass color.
    Might check harbor freight if you have one by you.

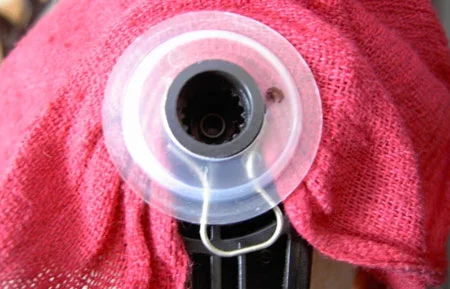

    The clip is between the washer and the crank. Get a old shirt/shop towel, cloth anything that’s thin enough to fit between the washer and crank use a flat head screwdriver to get the shirt/towel in place. The clip should be installed with the opening facing the long part of the crank so pull towards the short end of that makes sense.

  15. OR17TRD

    OR17TRD Well-Known Member

    Try that ^ and let me know.

  16. Lou Hahn

    Lou Hahn New Member

    Hey, thanks, that was very helpful.
    Amazon sez This does not fit your: 2004 Toyota Tacoma
    but the t-shirt worked. One side was easy and I was able to pry out the clip. The other side, I couldn't get at it, and struggled until the whole handle flew off and it took me a while to find the clip in the gravel.
    Appreciate the help.

    OR17TRD likes this.
  17. OR17TRD

    OR17TRD Well-Known Member

    Haha. Glad that worked and saved you from having to pay your repairman to do it. You would have been shaking your head when he grabbed a rag and popped it off in 1 min and took your money.

    Bogunn likes this.
  18. 4wd

    4wd Well-Known Member

    ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

    Those are all great tips, I'd just tell you to get a sawzall...:p

    Bogunn likes this.
