time for an upgrade from the Yota rear shocks...

JayQQ97

JayQQ97

MW surVivor ... clutched. 350k on the 0D0
... and i found a doozy of a broken left-turn lane yesterday... wherever does my wheel-tax-paid goto in this rough city IDK IDK

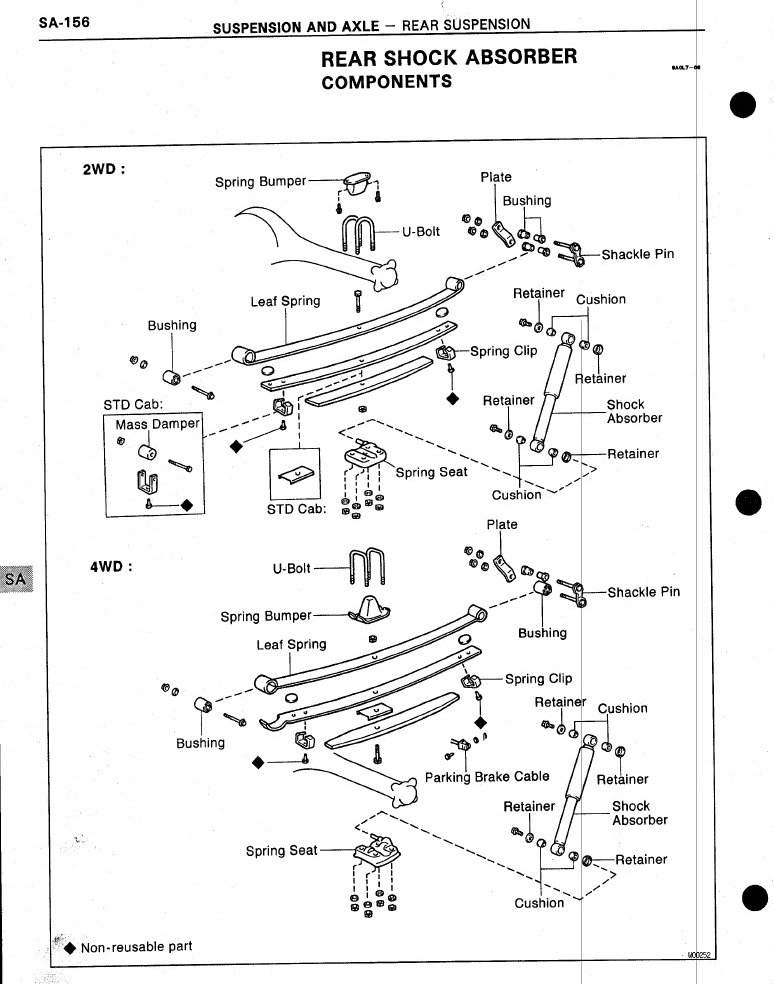

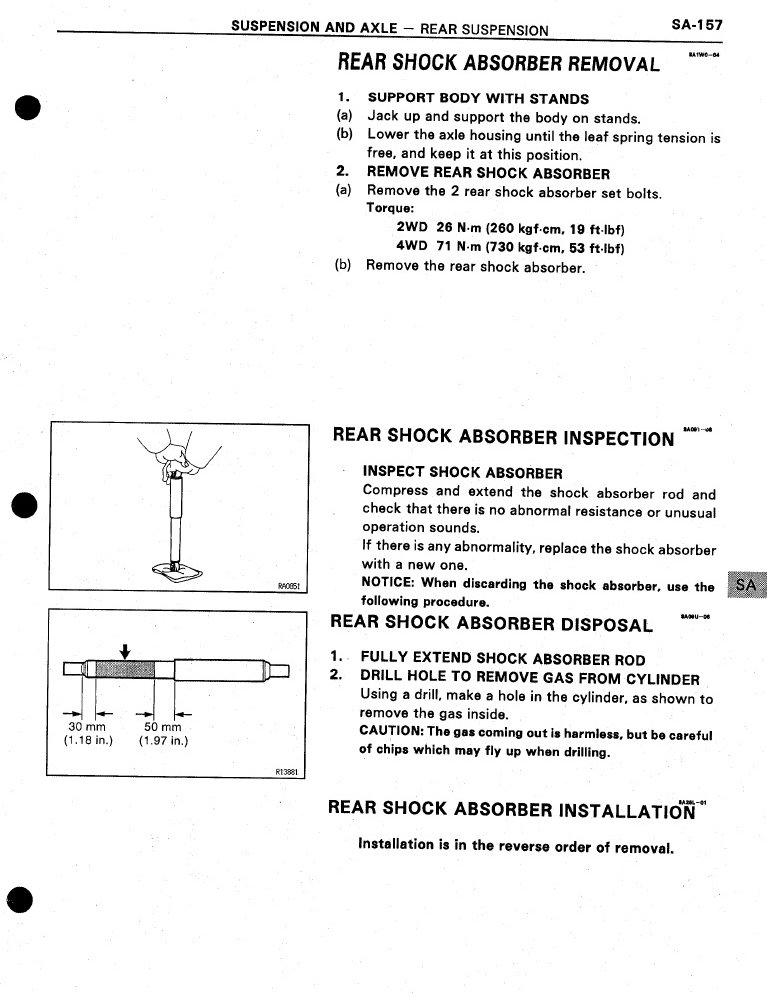

after some research it seems i can get them off the back with spare tire delete and no need to raise truck off the ground and release tension in the springs, as the FSM instructs to do so

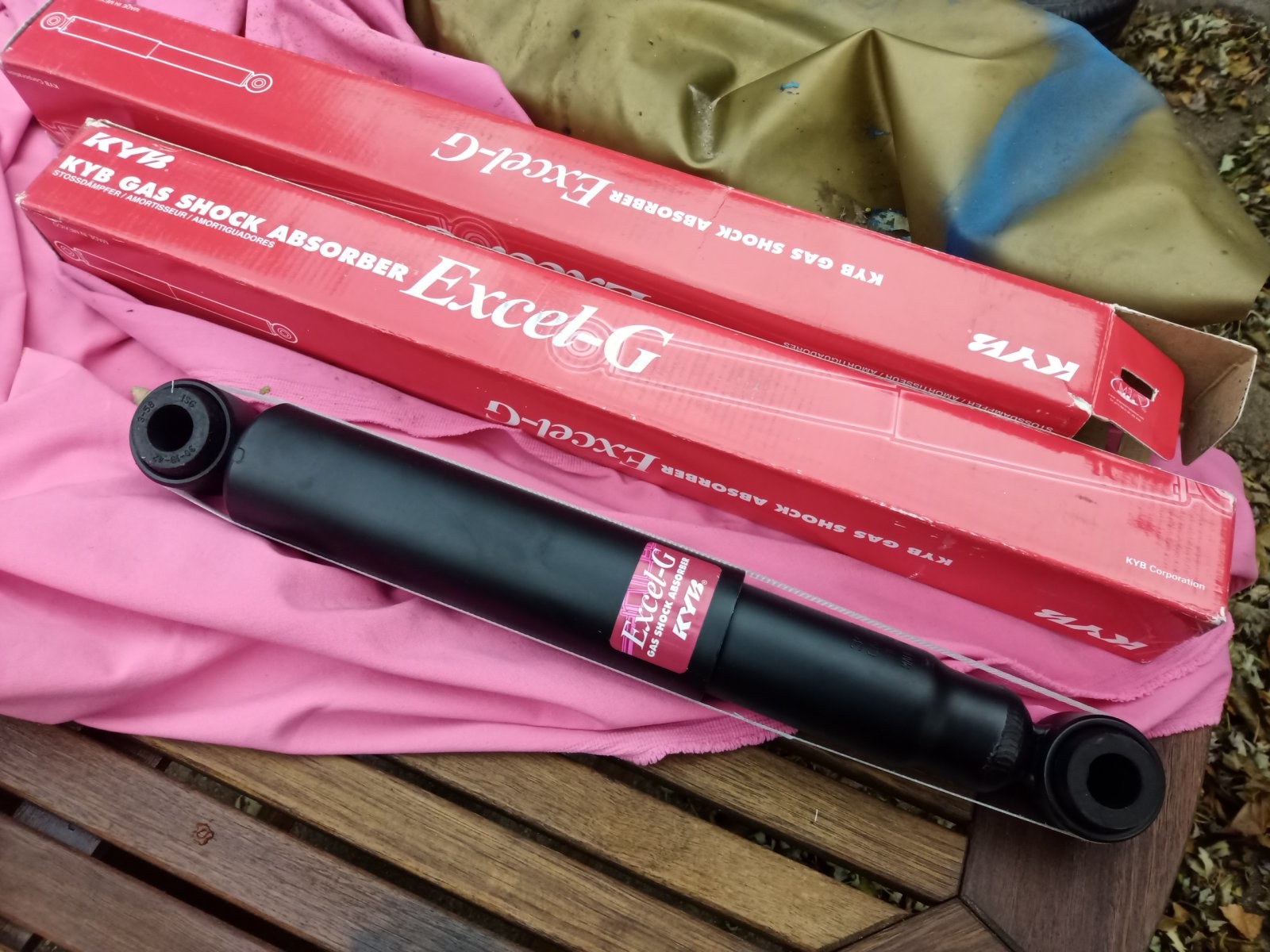

KYB is wot i was sold @ AAP

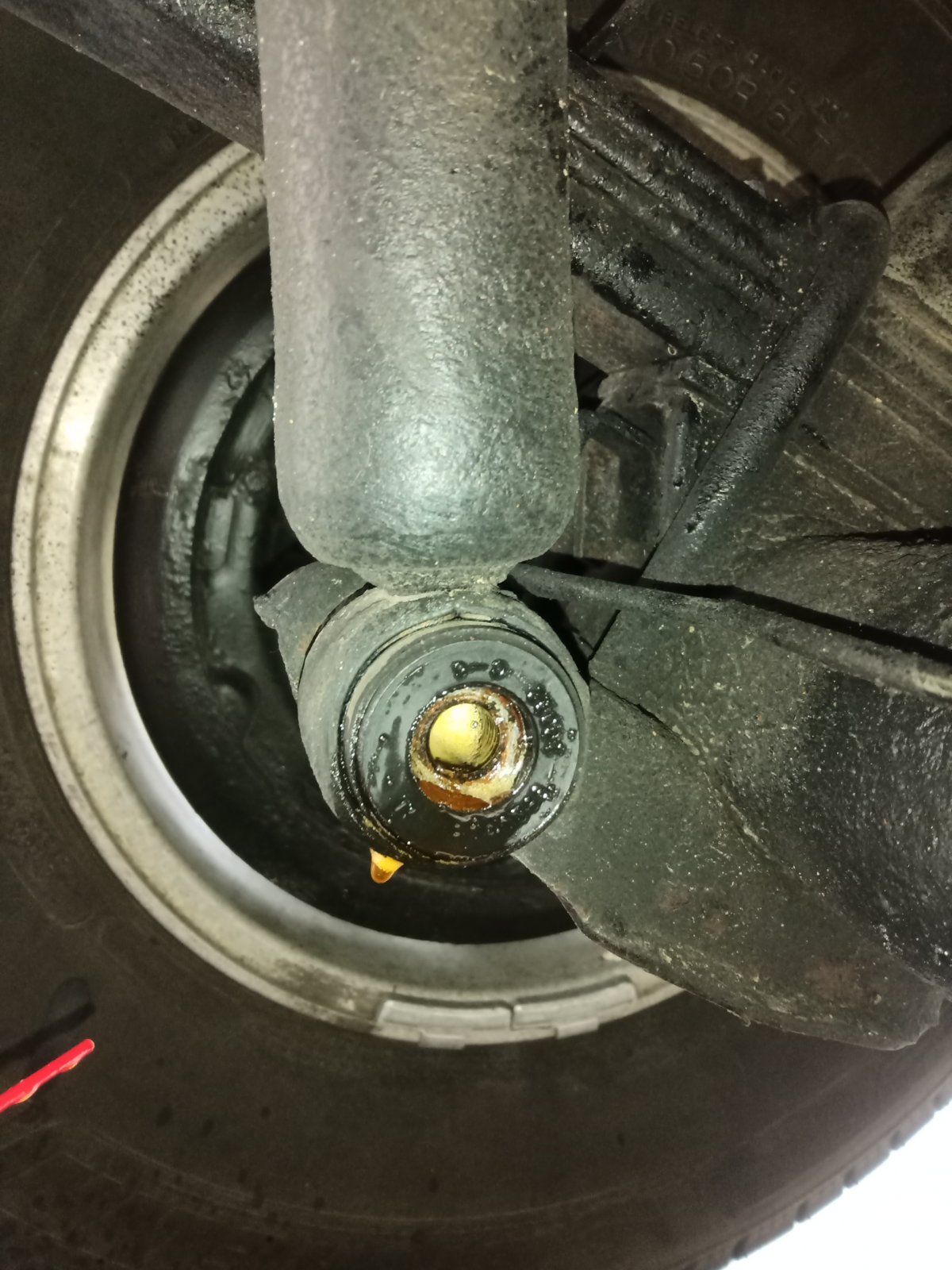

17mm

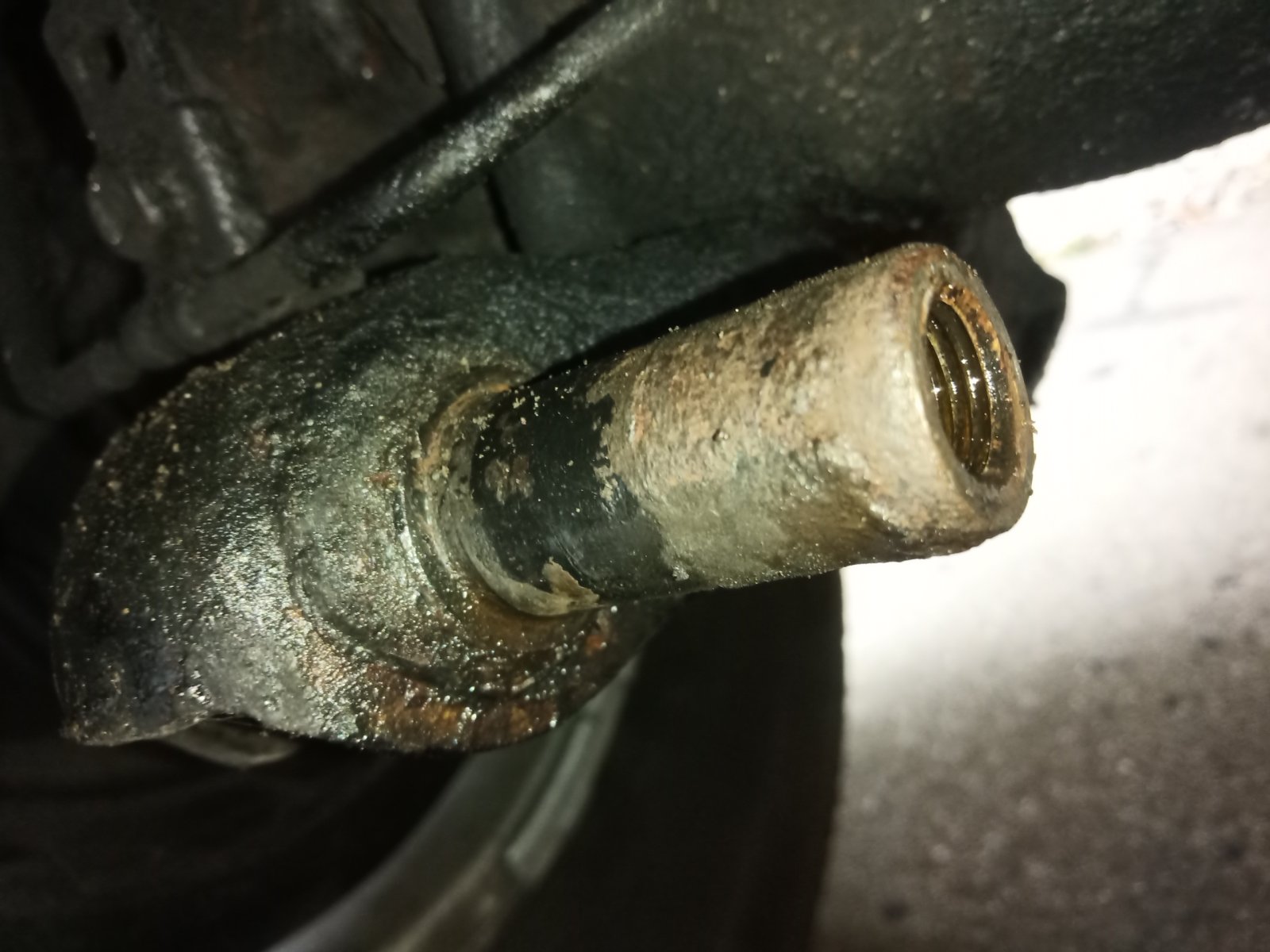

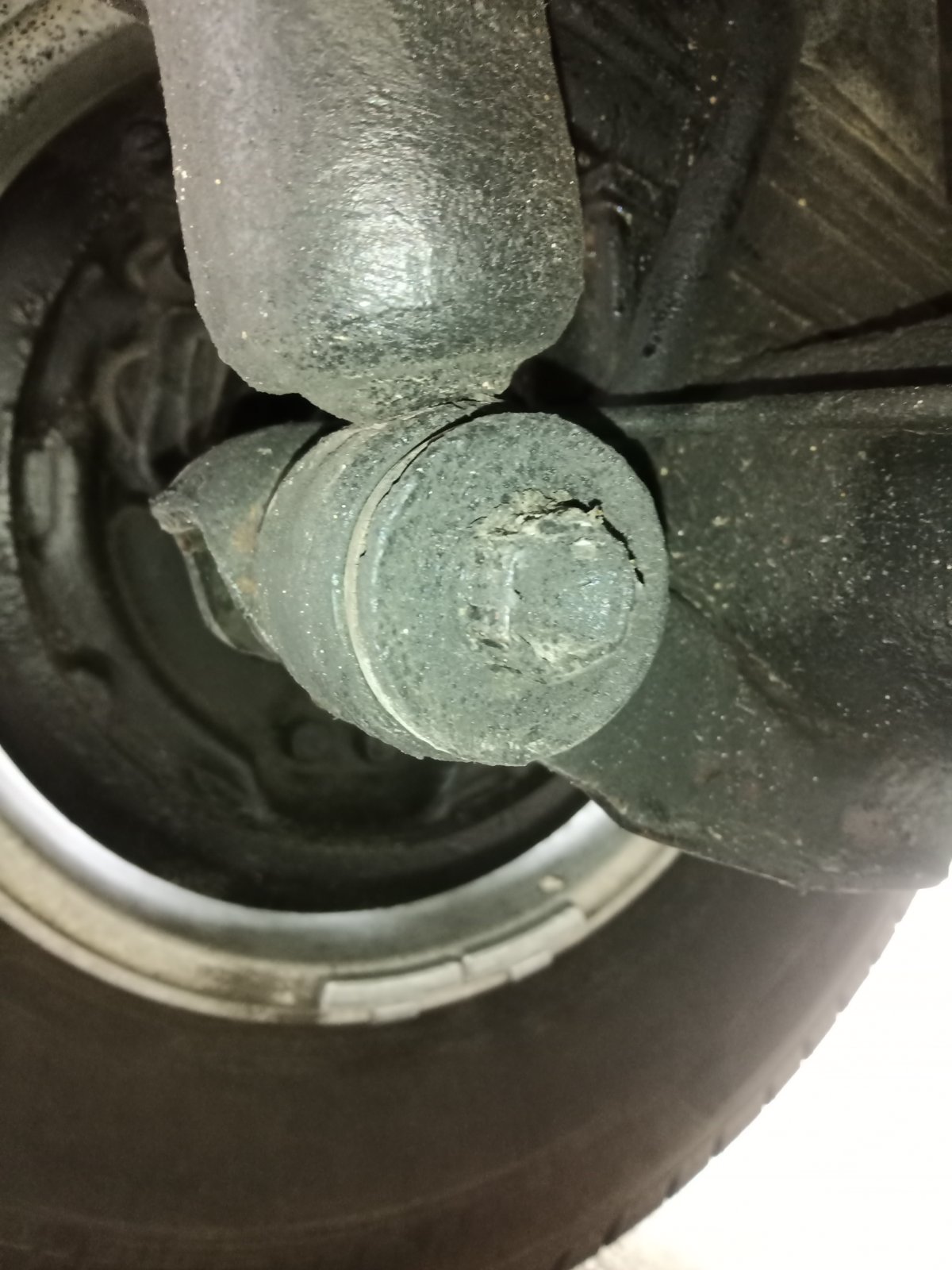

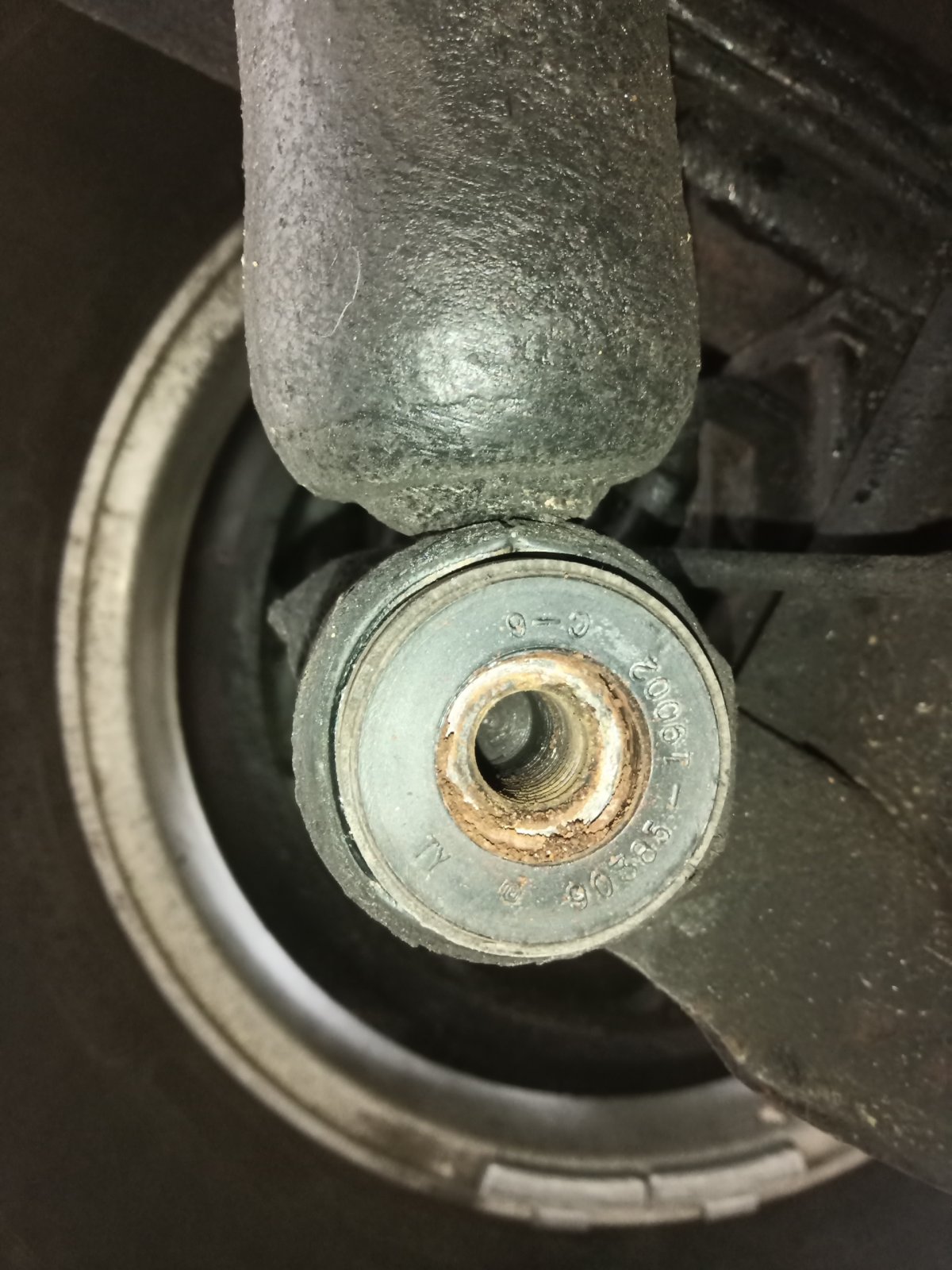

WoolWax coated for couple years kept rust off 'em It appears... or perhaps not as seen later

Last edited:
Now the pickle...

The new kyb are banded to prevent expansion but with truck on ground they are not long enough to just slip on and cut the band :confused:

I am not confident that my left bummed shoulder can muster the effort needed to squeeze it to for it to just slip on there

So far so good it is :D

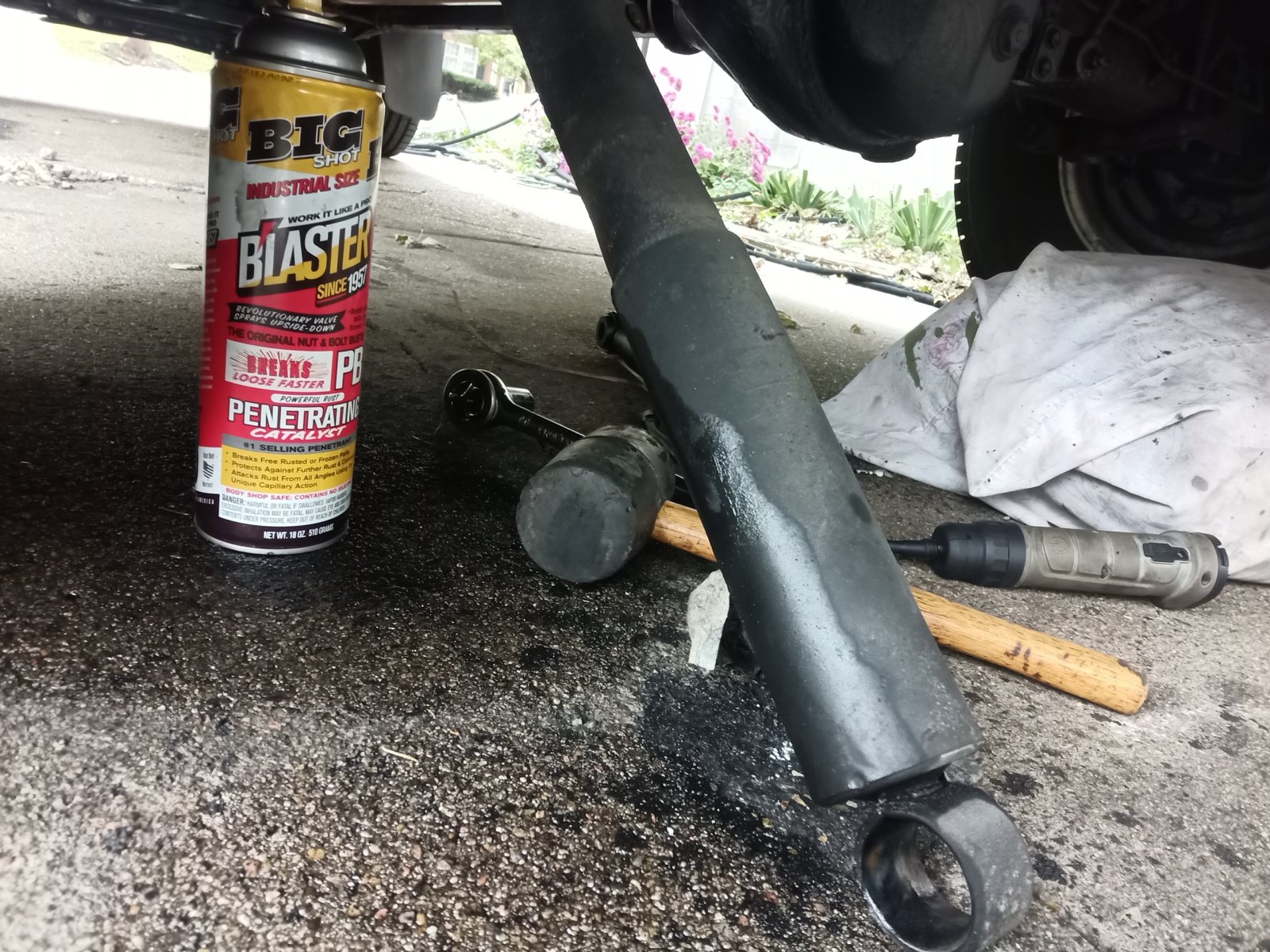

Came off smoothly with a couple gentle taps of the rubber mallet


Last edited:
It's much colder out now then when I first started
Rain clouds moving in, sun went away
Body is shivering and aching under the truck
The concrete is not ice cold yet
Alas..., I cannot finish this at the moment
:confused: :mad: :confused:

Last edited:
Throw a sheet of cardboard on the concrete. It'll give a bit of a cushion and some insulation.

Use the floor jack to raise the axle. I assume the truck is on jack stands. You can cut the retaining strap. The shock should expand slowly. The strap is used for shipping purpose.


Save your shoulders and muscles.

I just completed shock and struts on an '02 Chevy Trailblazer. They were OEM.

Rock62 said:
Throw a sheet of cardboard on the concrete. It'll give a bit of a cushion and some insulation.

Use the floor jack to raise the axle. I assume the truck is on jack stands. You can cut the retaining strap. The shock should expand slowly. The strap is used for shipping purpose.


Save your shoulders and muscles.

I just completed shock and struts on an '02 Chevy Trailblazer. They were OEM.
Click to expand...
No, it's not on any stands! I read it can be done on the ground relatively easy
I've seen horror stories on youTube where they are welded rusted rubber melted on and have to use pry bar and take wheel off for a better angle from the side
Thank goodness this was not the case here!

It took a spell to get the passenger side one off

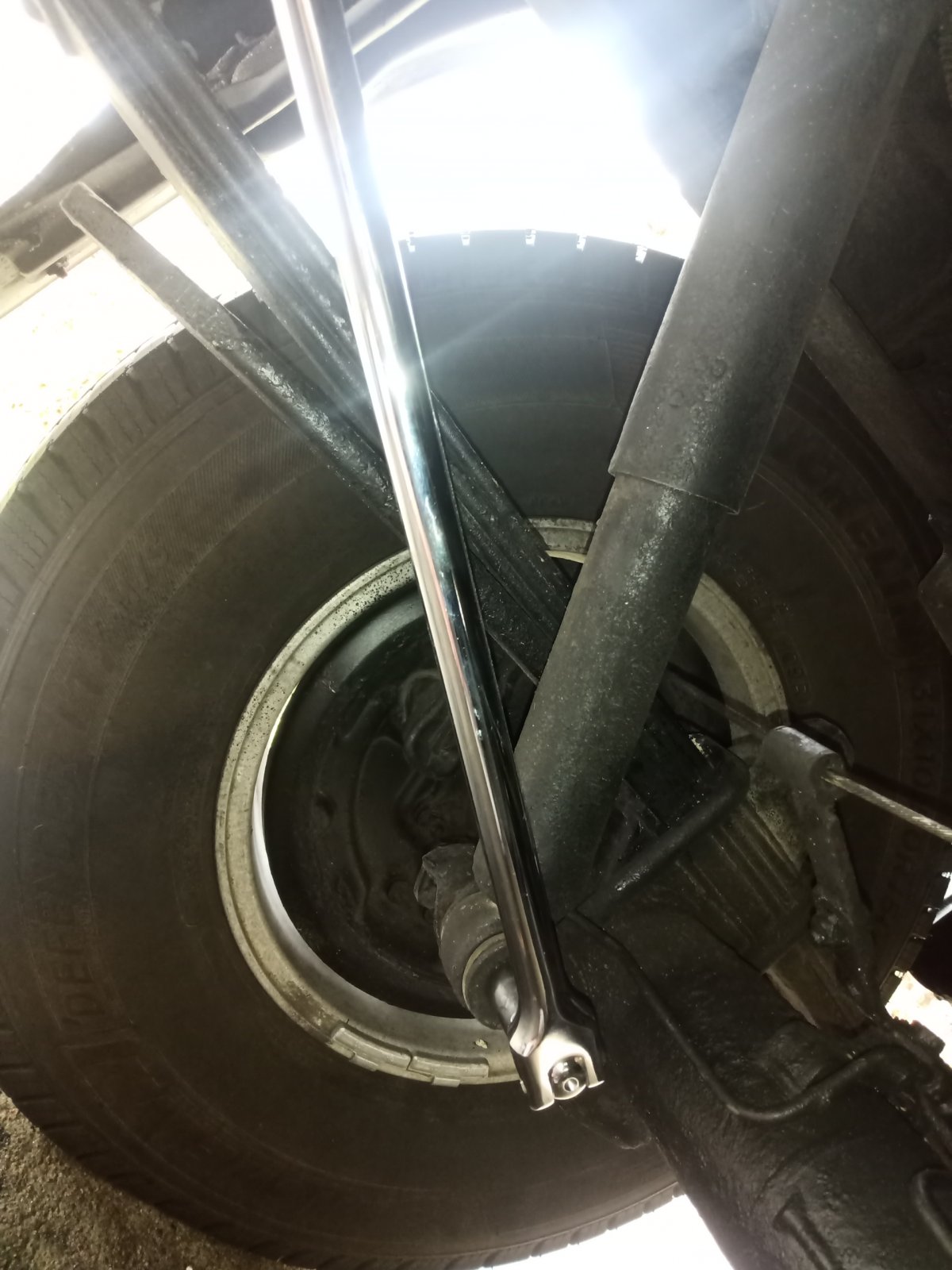

Had to get cramped under muffler and shaft to go up and over for the top bolt with a 10 inch extension on that breaker... then it needed a few more taps with the mallet than the other side did
No pics coz I was compromised and wrenched my neck under that

... just realised how dangerous this task is, when i finally popped that shock off with the mallet i was almost directly underneath :eek:
i think it bounced on the muffler hangar or else might've dropped right on top of my exposed skull and then worse outcome expected

good grief! these washers are 6$ after discount, 8.85 MSRP

9094803020 - Toyota Suspension Shock Absorber Mount Washer (Left | Lewis Toyota, Topeka KS

Genuine Toyota Part # 9094803020 - Suspension Shock Absorber Mount Washer (Left, Right, Rear). Fits 4Runner, Tacoma, Truck. Ships from Lewis Toyota, Topeka KS
parts.lewistoyota.com

the other side is 3.50 each

9094803011 - Toyota Washer | Lewis Toyota, Topeka KS

Genuine Toyota Part # 9094803011 - Washer. Fits 4Runner, Land Cruiser, LX 450, Tacoma, Truck. Ships from Lewis Toyota, Topeka KS
parts.lewistoyota.com

If the washers are in good condition, then why bother replacing them???

Rusted, wallowed out, bent, dished......sure.
